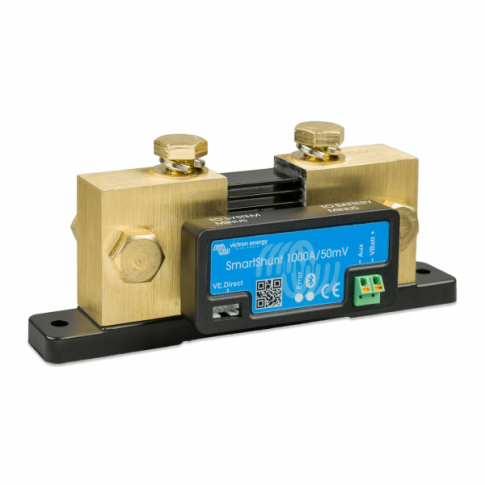

Victron 1000A 12V/24V/48V battery monitoring SmartShunt with inbuilt bluetooth
A battery-monitoring shunt with Bluetooth access through VictronConnect. It measures battery current and voltage and calculates state of charge without a separate display.
Product details
- Victron 1000A 12V/24V/48V battery monitoring SmartShunt with inbuilt bluetooth
- Nominal battery voltage: 12V / 24V / 48V
- Supply voltage range: 6.5 - 70V
- Input voltage range (Auxiliary battery): 6.5 - 70V
- Supply current: 1mA (12V) / 0.8mA (24V)
- Input current range: -1000A to +1000A
- Operating temperature range: -40°C to +50°C
- Voltage measurement accuracy: ±0.3%
- Current measurement accuracy: ±0.4%
