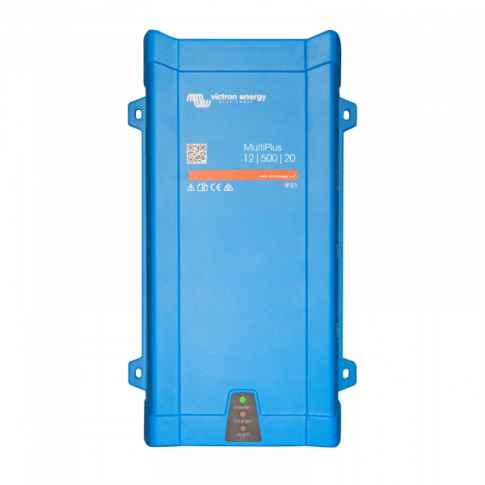

Victron MultiPlus 12/500/20-16 230V VE.Bus inverter charger
Skip to product information
Victron MultiPlus 12/500/20-16 230V VE.Bus inverter charger
Combines a sine-wave inverter, battery charger and AC transfer function in one unit for battery-backed AC power.
Product details
- Victron MultiPlus 12/500/20-16 230V VE.Bus inverter charger
- Input voltage range: 9.5 - 17 V
- Output voltage & frequency: 230 VAC ± 2% @ 50Hz ± 0.1% (can be adjusted to 240 VAC @ 60Hz)
- Cont. output power at 25°C: 500 VA (i.e., 430W)
- Peak power: 900W
- Maximum efficiency: 90%
- Zero-load power: 6W
- AC input voltage range: 187 - 265 VAC
- Charge voltage 'absorption': 14.4V
