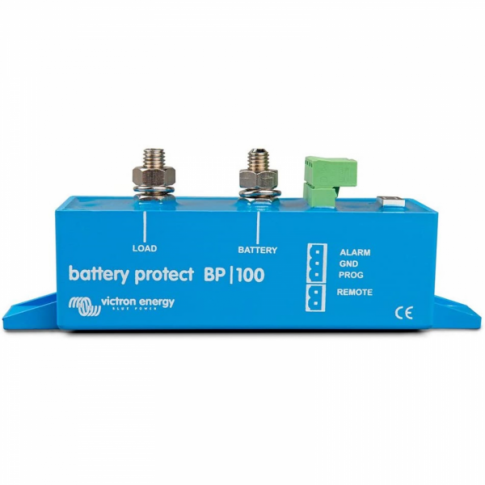

Victron BatteryProtect 100A 12V/24V battery over discharge protector
Disconnects non-essential DC loads when battery voltage falls below the configured threshold, helping prevent excessive battery discharge.
Product details
- Victron BatteryProtect 100A 12V/24V battery over discharge protector
- Nominal battery voltage: 12V / 24V
- Operating voltage range: 6 - 35V
- Maximum continuous current: 100A
- Peak current (30 seconds): 600A
- Current draw: <1.5mA active, <0.6mA during disconnect
- Alarm Relay: 50mA
- Operating temperature range: -40°C to +40°C (up to 60% capacity at 50°C)
- Dimensions: 59 x 42 x 115 mm
