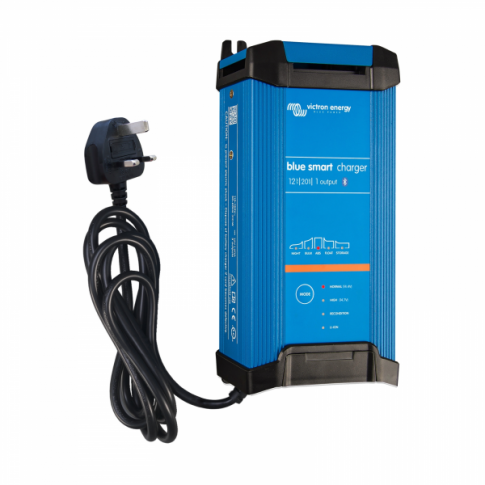

Victron Blue Smart 20A 12V 230V mains battery charger IP22
Skip to product information
Victron Blue Smart 20A 12V 230V mains battery charger IP22
An AC-powered battery charger with a multi-stage charging algorithm and Bluetooth monitoring and configuration through VictronConnect. This is the IP22 version.
Product details
- Victron Blue Smart 20A 12V 230V mains battery charger IP22
- Input voltage range (AC): 180V - 265V
- DC output current (normal mode): 20A
- DC output current (night or low mode): 10A
- DC output voltage: 12V
- Minimum battery capacity (normal mode): Lead-acid: 67Ah, Lithium: 40Ah
- Minimum battery capacity (low current mode): Lead-acid: 33Ah, Lithium: 20Ah
- Absorption charging voltage: 14.2V - 14.7V DC (depending on the battery type)
- Float charging voltage: 13.5V - 13.8V (depending on the battery type)
