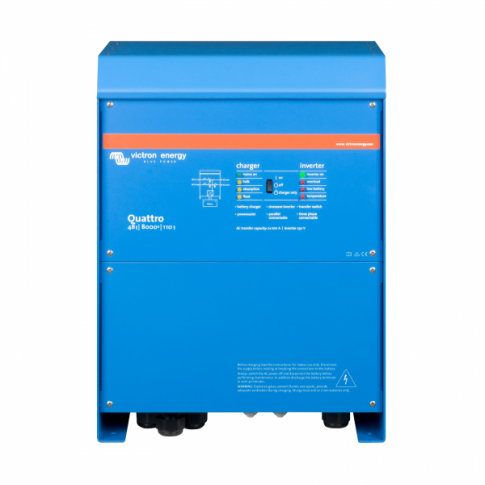

Victron Quattro 48/8000/110-100/100 230V VE.Bus
An inverter/charger with two AC inputs and automatic source selection, suited to systems using both shore or grid power and a generator.
Product details
- Victron Quattro 48/8000/110-100/100 230V VE.Bus
- Input voltage range: 38 - 66 V
- Output voltage & frequency: 230 VAC ± 2% @ 50Hz ± 0.1% (can be adjusted to 240 VAC @ 60Hz)
- Cont. output power at 25°C: 8000 VA (i.e., 6400W)
- Peak power: 16000W
- Maximum efficiency: 96%
- Zero-load power: 60W
- AC input voltage range: 187 - 250 VAC (50/60 Hz)
- Charge voltage 'absorption': 57.6V
